Flat Flex Conveyor Belts

Flat Flex Conveyor Belts

Flat Flex Conveyor Belts are also known as Enrober conveyor belts. The flat flex conveyor belt is constructed by several loop wires and then be formed a different edge. The simple structure makes it economical and lightweight for saving costs and avoiding downtime.

The Flat Flex Conveyor Belts are used with a single-layer structure, lighter, the use of sprocket drive. Large open area (opening 70-85%), often used in the lighter weight of the product cooling, frying, baking, drying, heating, decoration, wrapped powder and packaging equipment. Flat flex conveyor belts are multi-purpose single-sided mechanism (the most commonly used), double-side structure for special purposes. It can be used for linear conveyors and turn conveyors..

Flat Flex Conveyor Belts are used in many industries. The belts have a lightweight single-layer construction and are positively driven by sprockets. Flat Flex Conveyor Belts are made of stainless steel wire of spring wire, with good ventilation advantages, tension evenly, fine workmanship, the flat flex belts with a flexible rotation, good stability, High temperature, pressure resistance, corrosion resistance, long life and so on.


Specification:
1. Wire diameter 1.0mm-3.0mm
2. Rod pitch: 4.3 - 20mm
3. Material: stainless steel 304, stainless steel 316
4. Roll width: 200 -3600mm
5. Other specification is also available according to requirement.
Note: Pitch is generally customized according to clients' requirements, which is a non-standard conveyor belt.


Flat Flex Conveyor Belts advantages:

The max. proportion of open-mesh area available up to 86%
Easy to clean, clean-in-place design
No-slip, positive drive
Very low belt mass
Smallest diameter end rolls and drive rolls
Positive driven for accurate tracking
Curved rod network belt to suit different machines


Belt Types

Flat Flex Conveyor Belts are normally driven by toothed sprockets, made of stainless steel or plastic. These sprockets are made to fit the belt and are adapted to the diameter you wish.

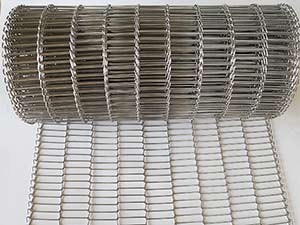

Flat Flex Conveyor Belts for straight conveyors

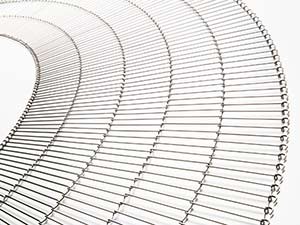

Flat Flex Conveyor Belts for curve conveyor

Edge Availability
Flat Flex Conveyor Belts are available in three edge Loop Types.
1.With a C-shaped Edge, reduce the ratio of catching and tangling by the belt edge.
2.With a Single Loop Edge, the most popular wire mesh belt edge finish. It is available for wire diameter 1.27 mm or above
3.With a Double Loop Edge, supplied for enrober belts.

Diverse combinations of pitch, wire diameter, mesh length and side finishing create a wide range of fit-for-purpose wire mesh conveyor belts.

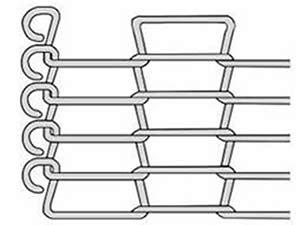

C-shaped Edge

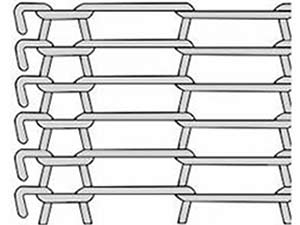

Single Loop Edge

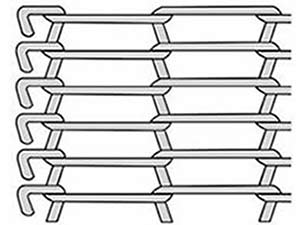

Double Loop Edge

The Flat Flex Conveyor Belts are frequently used in installations whereby food products undergo a certain process. You could thereby think of Garden / steaming / cooking / baking / frying / grilling but also of draping with chocolate or sprinkling with pips and/or seeds. Flat Flex Conveyor Belts are furthermore frequently used for take-over sets whereby products move from one installation/transporter to the other.

Application:

Flat flex conveyor belts are used in the food industry for the production of the following products: small dessert, fish products, pizza, vegetables, bread, flour, cakes, meat, candy, potatoes, biscuits, chocolate, nuts, and fruit.
Frying
Baking
Dough Rolling
Battering
Breading
Shrink Wrapping
Sterilization
Soldering
Architectural Mesh
Shuttling
Side Shifting
Collating
Crumbing
Searing
Glazing
Preparation
Sieving
Cooking
Heating
Drying
Cooling
Coating
Drainage
Freezing
Enrobing
